Vehicle Details
DIGGA 3DSS HALO Auger Drive Skid Steer mount KIT
New 2023 DIGGA 3DSS HALO Auger Drive Skid Steer Mount Kit

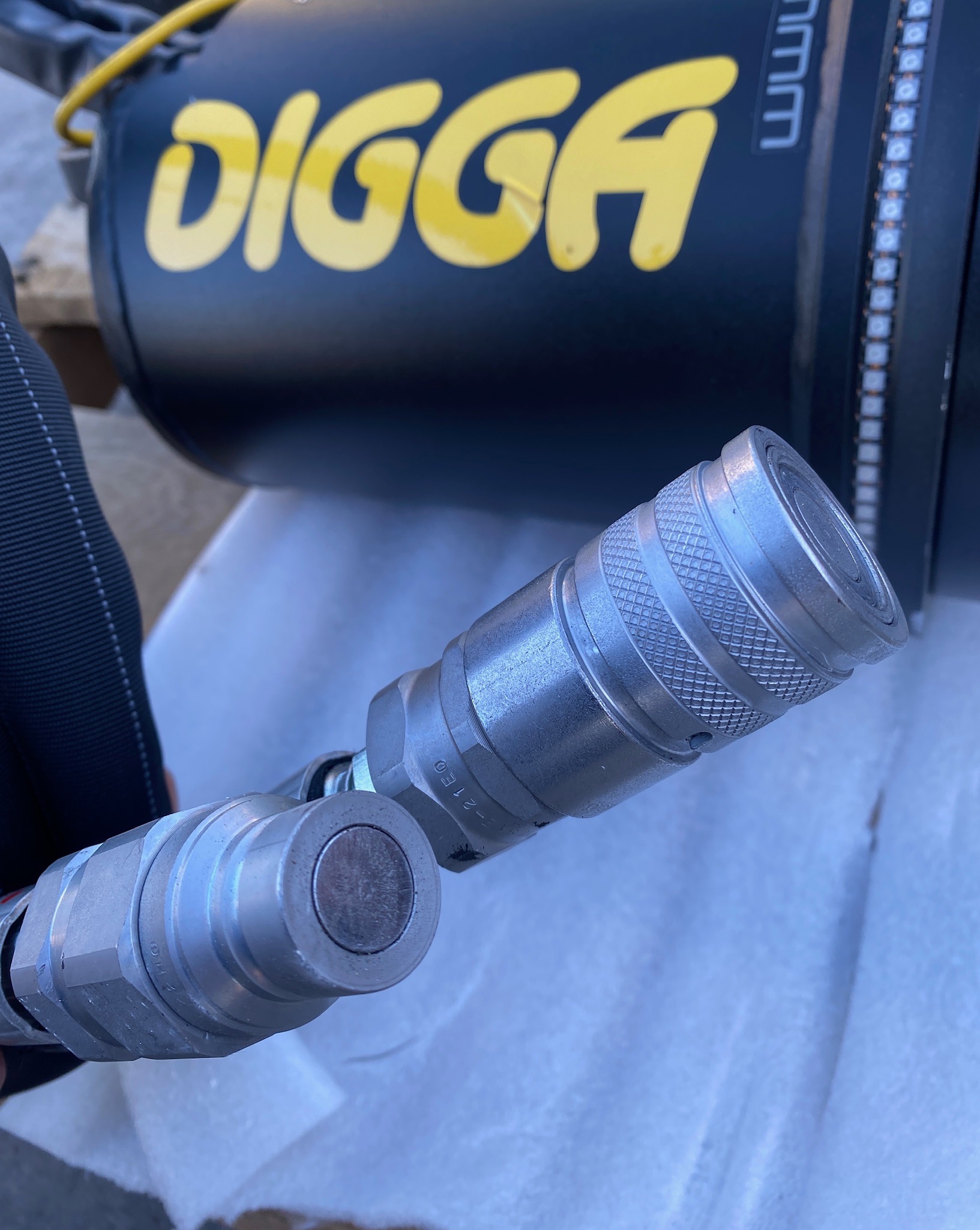

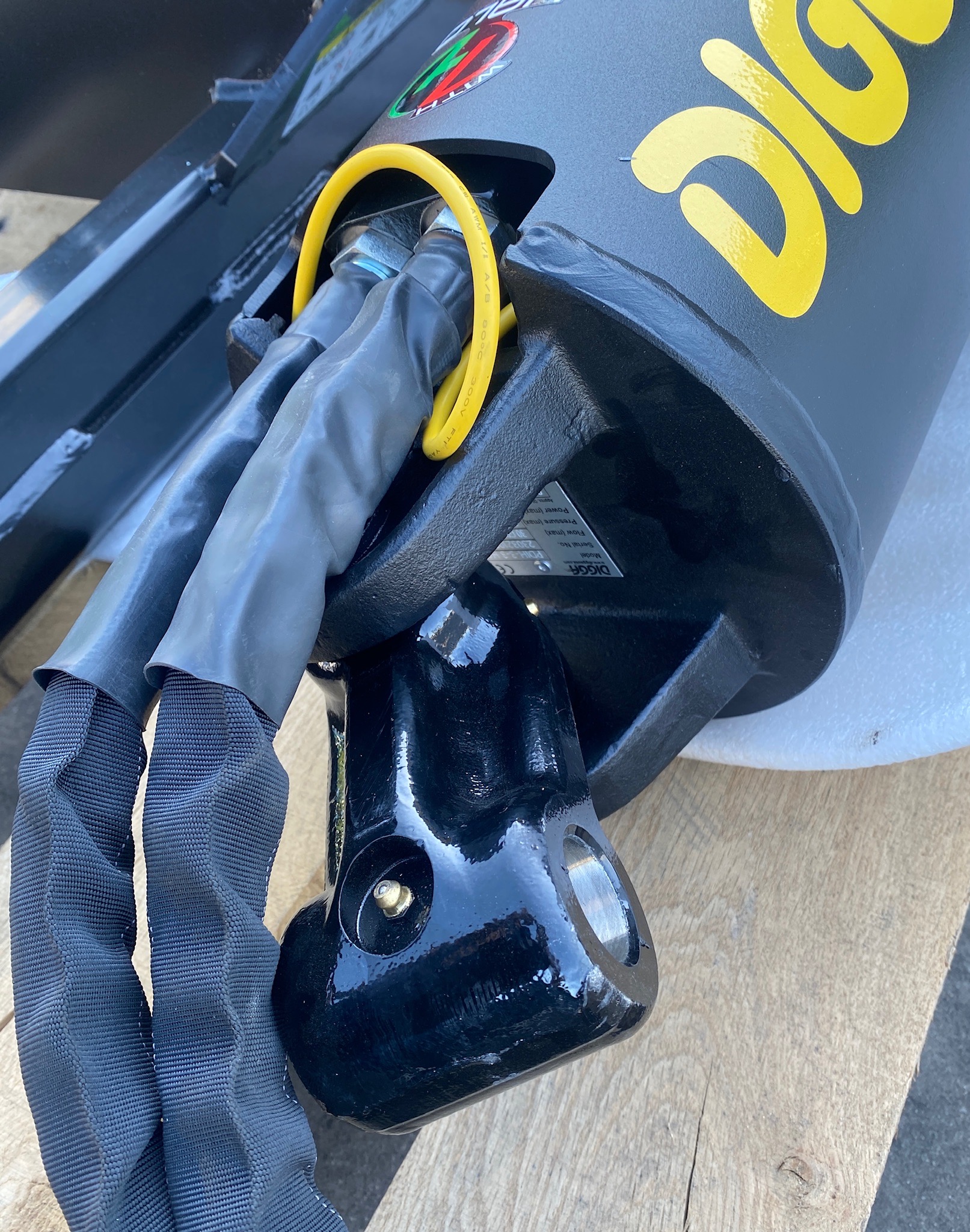

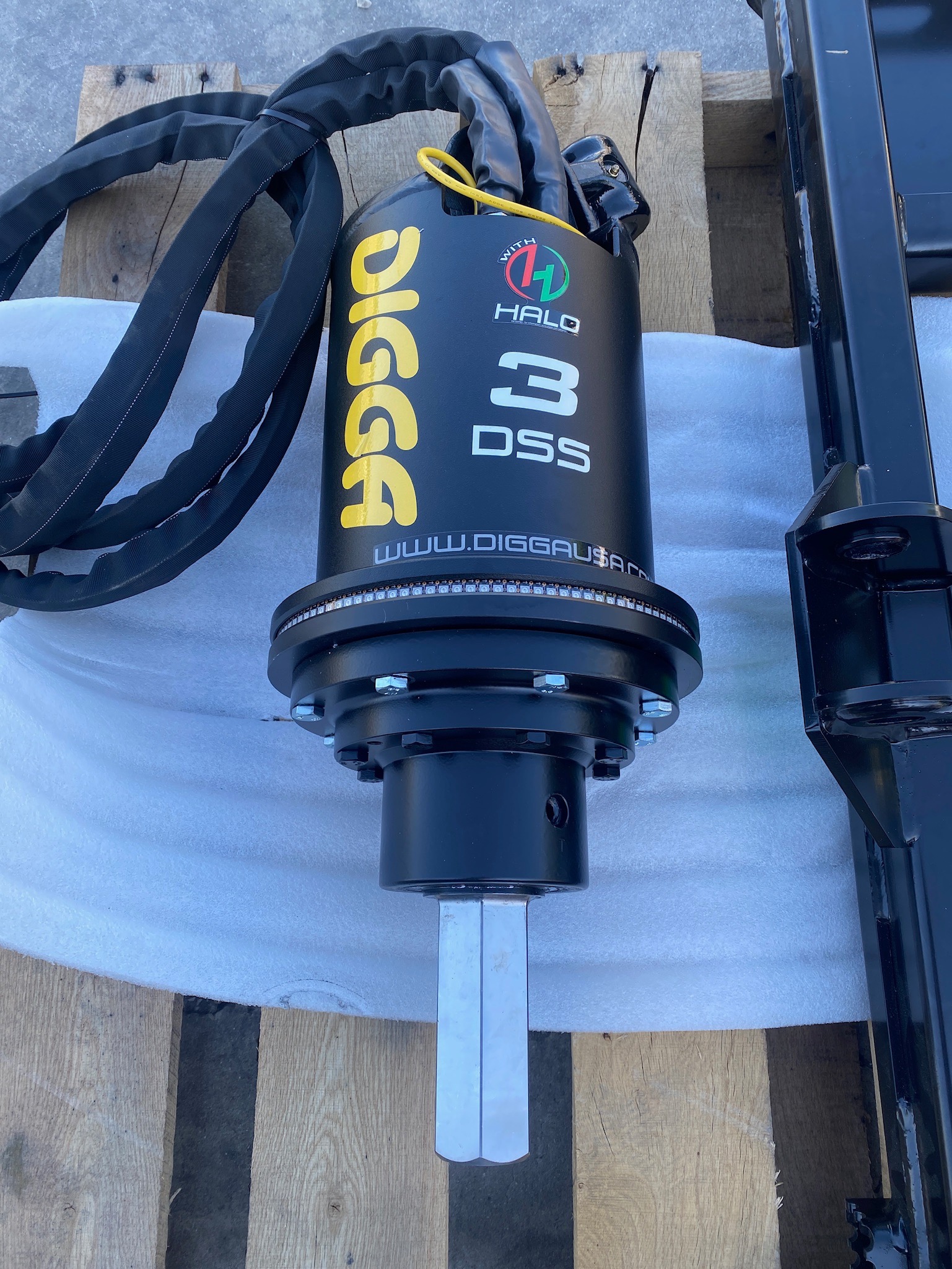

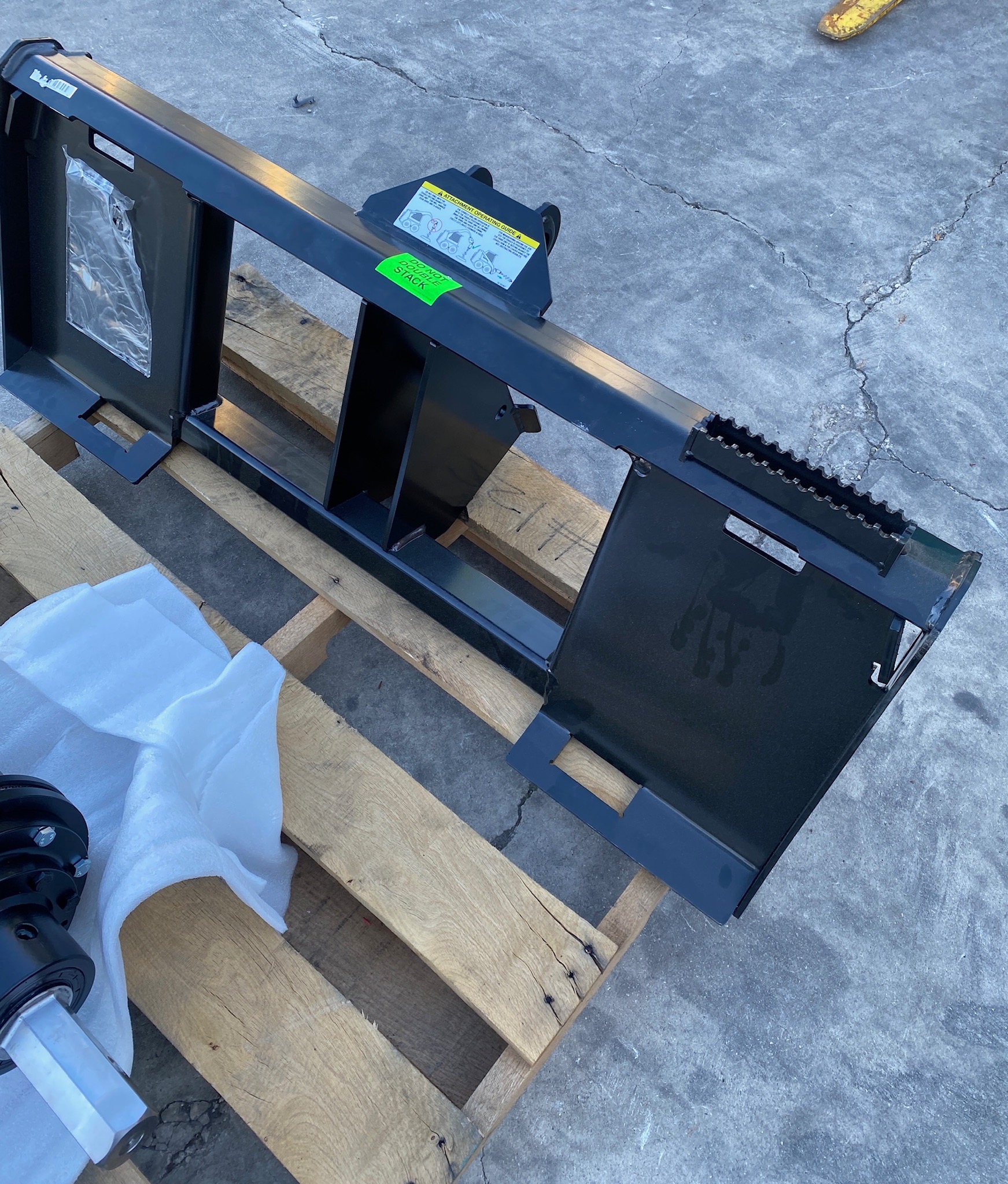

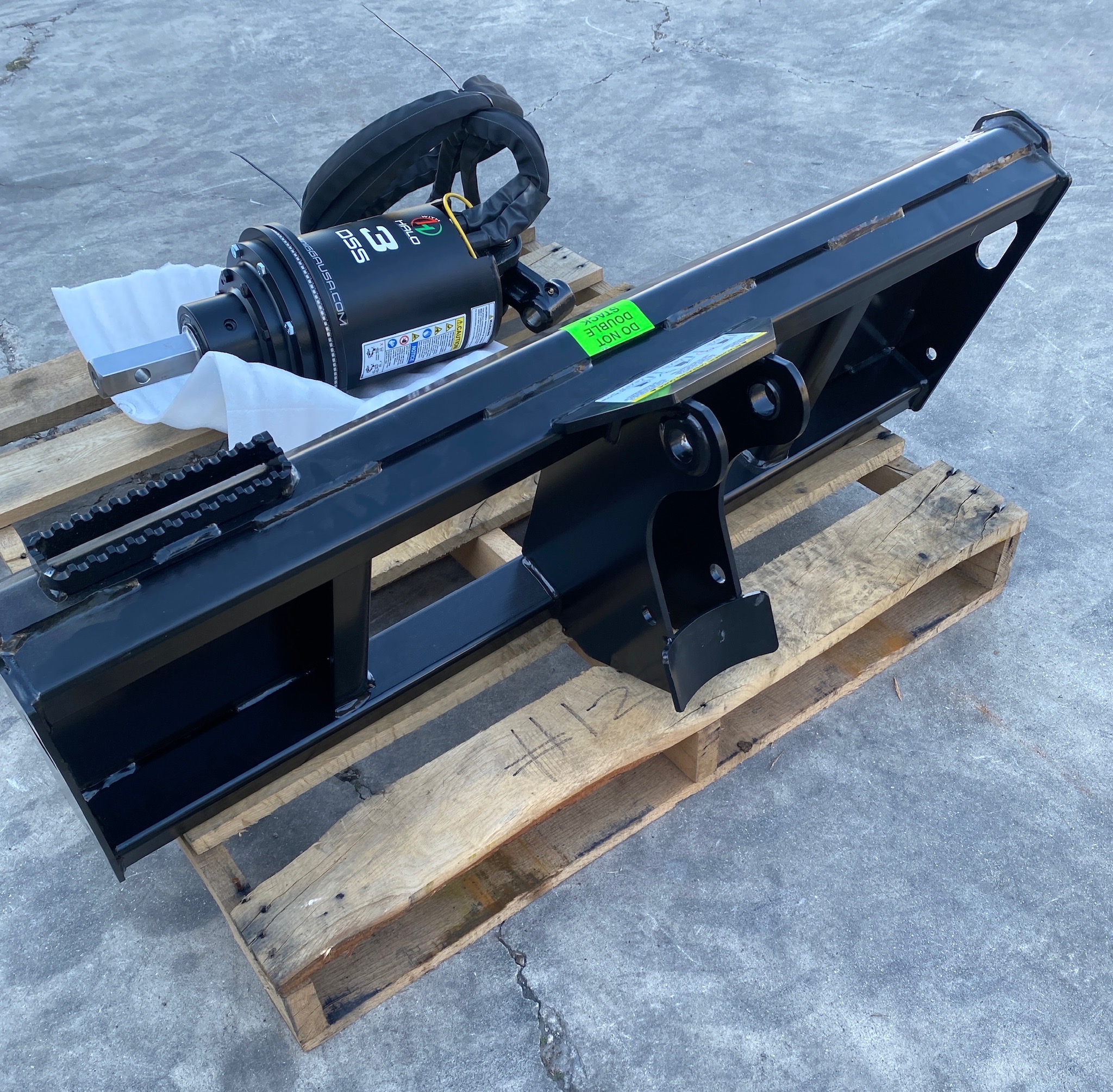

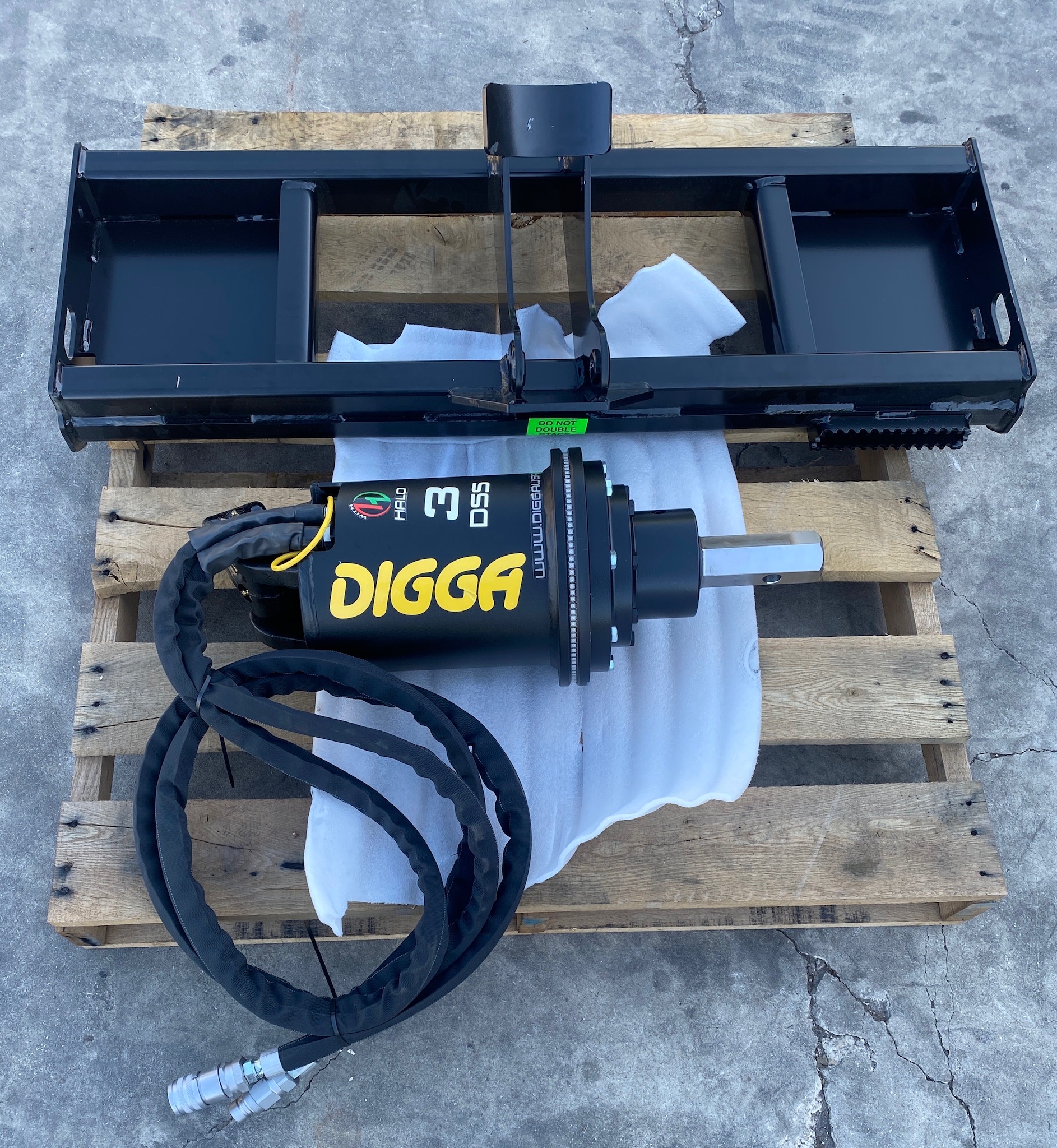

KIT INCLUDES the following : 3DSS Halo Auger Drive Motor, Universal skid steer mounting frame and linkage, 87” hydraulic hoses, Flat face quick disconnects, HALO direct 12v outlet connection.
HALO Magnet Remote battery Kit available for an additional $370.79.
The Halo Auger Alignment System is located in the hood ring of the auger. It provides the operator with a simultaneous clear line of sight to itself, and the hole being dug. HALO utilizes a band of LED lights. If the auger moves from its plumb position, a sequence of red and green lights will be lit to effortlessly guide the operator back to plumb.
Why you need HALO for your auger
• No spotter, or spirit level needed to guide the operator
• HALO does not take holidays or sick leave
• Never take your eyes off the job
• Ensure holes are drilled plumb and reduce the number of in-hole angle adjustments;
◦ No oversized holes - Reduce the amount of concrete required to fill the hole
◦ Eliminates sideload on augers & auger bits, which may lead to expensive repairs
• Get back to drilling faster after returning the auger bit into the hole
• HALO costs significantly less than traditional alignment systems
• HALO can eliminate the need for a costly in-cab display
- Compact Digga manufactured gearbox
- Digga designed Eaton motor
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gearbox and 3 year motor warranty
- Over 30 years design and manufacturing experience
| SPECS | 3DSS | 4DSS | 4DDS |
| TORQUE (FT-LBS @ 3000 PSI |
2,829 | 3,275 | 3,583 |
| MAX TORQUE FT-LBS @ 3500 PSI |
3,300 | 3,821 | 4,180 |
| RECOMMENDED FLOW (GPM) | 10-30 | 10-30 | 10-36 |
| MOTOR TYPE | EATON | EATON | EATON |
| MAX PRESSURE - DO NOT EXCEED |
3500 PSI @ 16 GPM | 3500 PSI @ 27 GPM |
|
| MAX FLOW - DO NOT EXCEED |
30 GPM @ 1800 PSI | 42 GPM @ 3100 PSI |
|
| MAX HORSE POWER | 34 | 34 | 55 |
| PRESSURE RELIEF VALVE | N/A | N/A | INCLUDED |
| STANDARD OUTPUT SHAFT | 2" HEX | 2" HEX | 2" HEX |
| HALO | OPTIONAL | OPTIONAL | OPTIONAL |
| RECOMMENDED AUGER | A4 / RC4 | A4 / RC4 | A4 / RC4 |
| MAX DRILLING DIAMETER (CLAY / SHALE)* |
24" | 24" | 24" |
| MAX DRILLING DIAMETER (EARTH)* |
30" | 30" | 40" |
| WEIGHT (LBS) | 123 | 125 | 180 |
| OVERALL LENGTH (IN) | 25.9" | 25.9" | 29" |
| DIAMETER (IN) | 9.4" | 9.4" | 9.4" |
(*) Max/min drilling diameter (DIA) dependant on ground conditions. Guide is a recommendation only.
Price: $3,990
** freight and sales tax not included at posted price *
Related Vehicle
- Condition New
- Horsepower 34
- Stock Number 280048
- Serial Number 2303280048
